🙌前言

👉縱斷面發展來源

AutoCAD VBA 縱斷面繪製自動化

🐞開發過程中的小問題

縱斷面繪製時會針對需要文字說明的樁號進行插旗繪製，可能會造成插旗文字出現重疊的原因有兩個

  1. 插旗說明樁號距離太近(0+200、0+205)
  2. 繪製X軸比例太小(1:1000 vs 1:5000)

繪製過程會考量圖紙輸出的舒適度，最小字高通常會以3.4.5為原則，文字說明會固定以30度呈現

當距離太近時可以透過調整X軸比例讓間距拉開，橫向會重疊的時候就進行上下位移，方便讀者觀看。

因此本篇就是要透過VBA抓取說明文字的外框及下線，自動調整文字重疊內容，以下進行說明:

📌範例說明

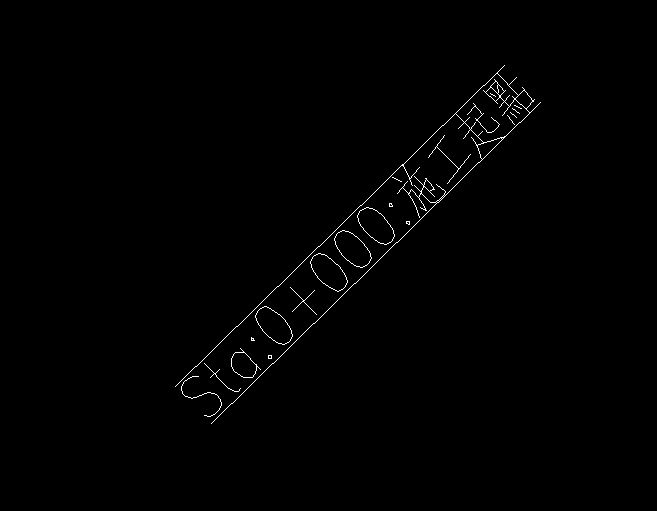

Fig1. 插旗文字說明

🔷流程解說

一般插旗文字都是屬於旋轉至第一象限的內容(0度~90度)

  1. 透過CAD VBA內建指令GetBoundingBox找到邊界點。
  2. 透過幾何圖形學及三角函數關係進行列式。
  3. 用一元二次聯立方程式解析參數。
  4. 代回原本第一象限的正確點位。
  5. 引入clsACAD進行LINE物件繪製。

🌟幾何關係

\[ Hcos\theta+Lsin\theta=Y_1-Y_0=const. \] \[ Hsin\theta+Lcos\theta=X_1-X_0=const. \]

正確角點:

點名 X座標 Y座標
左下 \[ X_0+Hsin\theta \] \[ Y_0 \]
右下 \[ X_1 \] \[ Y_1-Hcos\theta \]
左上 \[ X_0 \] \[ Y_0+Hcos\theta \]
右上 \[ X_1-Hsin\theta \] \[ Y_1 \]

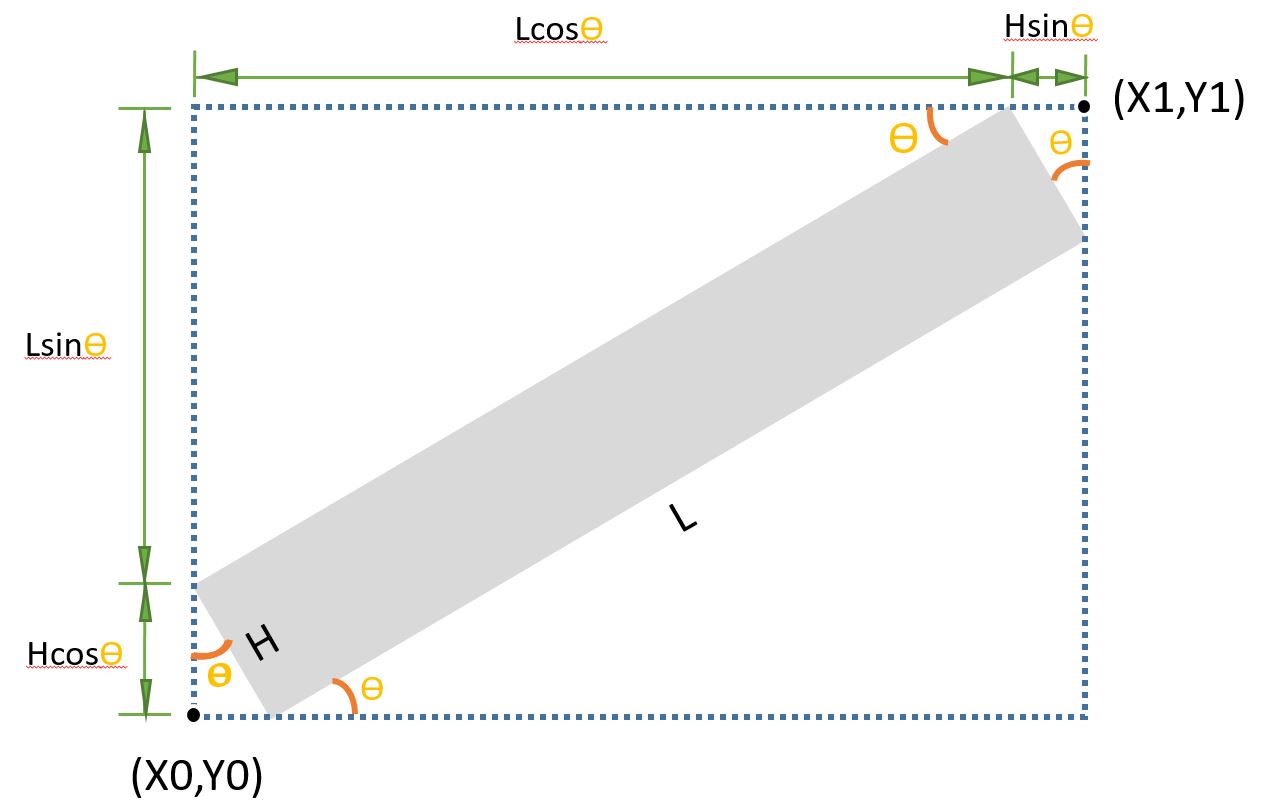

Fig2. 文字外框、點位幾何關係

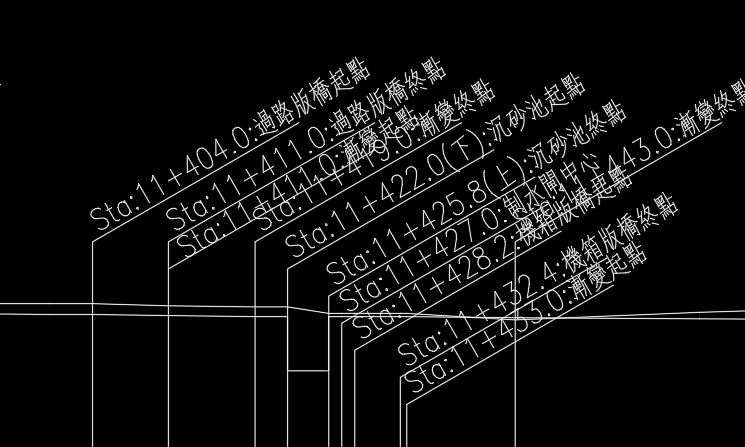

Fig3. 上下底線繪製成果

⚡程式碼

模組(module)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

Sub test_getBoundingBox()

    '適用於第一象限

    Dim CAD As New clsACAD
    Dim L As Double
    Dim H As Double

    Set sset2 = CAD.CreateSSET()
    Set entobj = sset2(0)

    rotate_degree = entobj.Rotation * 180 / 3.14

    Call entobj.GetBoundingBox(Min, Max)

    X0 = Min(0)
    Y0 = Min(1)
    X1 = Max(0)
    Y1 = Max(1)

    Call CAD.AddPoint(Min)
    Call CAD.AddPoint(Max)

    '---一元二次聯立方程式---

    a1 = Sin(rotate_degree / 180 * 3.14)
    b1 = Cos(rotate_degree / 180 * 3.14)
    c1 = Y1 - Y0

    a2 = Cos(rotate_degree / 180 * 3.14)
    b2 = Sin(rotate_degree / 180 * 3.14)
    c2 = X1 - X0

    Call SolveLinearEquations(a1, b1, c1, a2, b2, c2, L, H)

    '------底線------

    Xpt_LD = X0 + H * Sin(rotate_degree / 180 * 3.14)
    Ypt_LD = Y0

    Xpt_RD = X1
    Ypt_RD = Y1 - H * Cos(rotate_degree / 180 * 3.14)

    Call CAD.AddLineCO(Xpt_LD, Ypt_LD, Xpt_RD, Ypt_RD)

    '-------頂線------

    Xpt_LU = X0
    Ypt_LU = Y0 + H * Cos(rotate_degree / 180 * 3.14)

    Xpt_RU = X1 - H * Sin(rotate_degree / 180 * 3.14)
    Ypt_RU = Y1

    Call CAD.AddLineCO(Xpt_LU, Ypt_LU, Xpt_RU, Ypt_RU)


End Sub

Function SolveLinearEquations(ByVal a1 As Double, ByVal b1 As Double, ByVal c1 As Double, ByVal a2 As Double, ByVal b2 As Double, ByVal c2 As Double, ByRef x As Double, ByRef y As Double) As Boolean
    Dim determinant As Double

    determinant = a1 * b2 - a2 * b1

    If determinant = 0 Then
        SolveLinearEquations = False
    Else
        x = (c1 * b2 - c2 * b1) / determinant
        y = (a1 * c2 - a2 * c1) / determinant
        SolveLinearEquations = True

    End If

End Function

物件類別模組(clsACAD)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112

Private mo As Object
Private pa As Object

Public acadDoc As Object
Public CADVer As String

Private Sub Class_Initialize()

strCAD = "AutoCAD.application"
CADVer = "AUTOCAD"

Call CADInit(strCAD)

End Sub

Private Sub CADInit(ByVal strCAD As String)

On Error Resume Next

Set acadApp = GetObject(, strCAD) '查看安裝
If Err <> 0 Then Set acadApp = CreateObject(strCAD)
acadApp.Visible = True

On Error GoTo 0

Set mo = acadApp.ActiveDocument.ModelSpace
Set pa = acadApp.ActiveDocument.PaperSpace
Set acadDoc = acadApp.ActiveDocument

End Sub

Function CreateSSET(Optional ByVal sname As String = "SS1", Optional ByVal ftypetmp As Variant = "", Optional ByVal fdatatmp As Variant = "")

'****PorgeCAD中似乎沒辦法做到過濾的條件?*****

'0:object type
'2:object name
'8:layer name
'62:color number(0 to 256)

Dim FilterType() As Integer
Dim FilterData() As Variant

On Error Resume Next: acadDoc.SelectionSets(sname).Delete: On Error GoTo 0

Set sset = acadDoc.SelectionSets.Add(sname)

If ftypetmp = "" Then

    sset.SelectOnScreen

Else

    ft = Split(ftypetmp, ",")
    fd = Split(fdatatmp, ",")

    ReDim FilterType(0 To UBound(ft))
    ReDim FilterData(0 To UBound(fd))

    For i = 0 To UBound(ft)

        FilterType(i) = ft(i)
        FilterData(i) = fd(i)

    Next

    sset.SelectOnScreen FilterType, FilterData

End If

Set CreateSSET = sset

End Function

Function AddPoint(pt) As Object

If CADVer = "ICAD" Then
    Set AddPoint = mo.AddPointEntity(tranPoint(pt))
Else
    Set AddPoint = mo.AddPoint(tranPoint(pt))
End If

End Function

Function AddLineCO(X1, Y1, X2, Y2) As Object

Dim spt(2) As Double
Dim ept(2) As Double
spt(0) = X1: spt(1) = Y1
ept(0) = X2: ept(1) = Y2

Set AddLineCO = AddLine(spt, ept)

End Function

Function AddLine(spt, ept) As Object

Set AddLine = mo.AddLine(tranPoint(spt), tranPoint(ept))

End Function

'=============transform ICAD about point and points======================

Function tranPoint(ByVal CADpt)

If CADVer <> "ICAD" Then tranPoint = CADpt: Exit Function

Set tranPoint = Library.CreatePoint(CADpt(0), CADpt(1), CADpt(2))

End Function

👉後續利用

確認下一文字外框點是否位於這次文字框中，進行重疊文字判識，如不符合則再上下位移即可。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

Function checkPtFromBorders(midX,midY,BorderPTs) as boolean

Border_minX = CDbl(BorderPTs(0))
Border_minY = CDbl(BorderPTs(1))
Border_maxX = CDbl(BorderPTs(2))
Border_maxY = CDbl(BorderPTs(3))

If midX >= Border_minX And midX <= Border_maxX And midY >= Border_minY And midY <= Border_maxY Then

    checkPtFromBorders = true
    Exit For

End If

End Function
