前言

工程進行階段因為業主、監造不一定都會在現場，無論施工抽查、品質管理、隱蔽部分尺寸紀錄、督導會勘...等等內容，大多數文件都會需要照片作為佐證資料，尤其是假設工程、隱蔽部分更是需要，因此整個工程案進行過程可能會累積大量的照片，後續的請款報表照片貼附、照片檔案查找，會是讓內業人員相當花費時間的一環。

實務上大多會採用LINE群組進行照片上傳，照片說明會出現在畫面中的小白板，再由內業人員自行下載備存，放在本機硬碟中或者是放在公司的NAS裡面，未來需要利用時再去自己所分類的資料夾中比對、下載、貼附，因此對於處理照片的檔案管理、報表輸出我想需要有方法來完成大量、繁複、簡單的工作流程，節省時間來做其他業務內容。

因此，施工照片VBA誕生了，於2023年1月發布給大眾使用運行至今，該修復的內容大概已經完成，以下為目前所釋出的施工照片VBA部分內容，完整內容請參考施工照片VBA完整原始碼。

DEMO

第一章節 資料夾

1-1 取得資料夾

學習如何透過VBA內建的資料夾選擇視窗將照片存放路徑放置到工作表

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Sub SelectFolder()

Dim objDialog As FileDialog

Set objDialog = Application.FileDialog(msoFileDialogFolderPicker)

With objDialog

    If .Show = True Then

        Sheets("Main").Range("B2") = objDialog.SelectedItems(1)

    End If

End With

End Sub

1-2 查看資料夾

學習如何透過Shell的方法來開啟指定資料夾

1
2
3
4
5
6
7
Sub showFolder()

main_path = Sheets("Main").Range("B2")

Shell "explorer.exe " & main_path, vbNormalFocus

End Sub

第二章節 照片基本資料

2-1 照片檔案管理

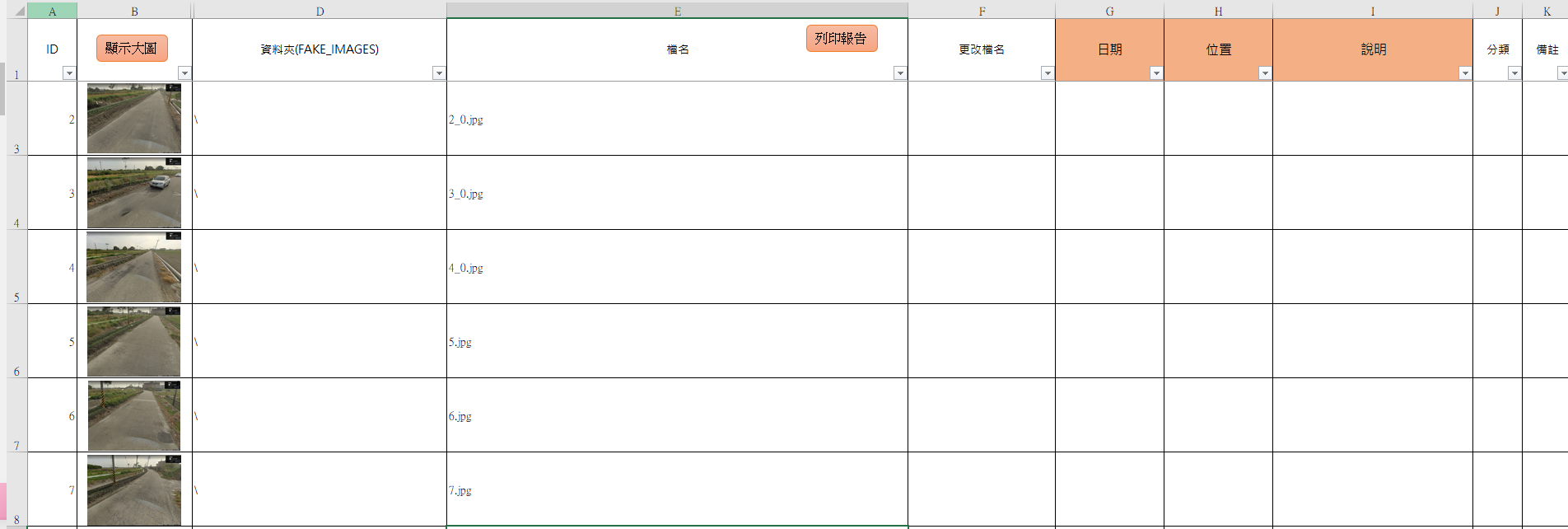

資料庫介面
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Sub getDataFromFolder()

Dim clsInf As New clsInformation
Dim objFile As New clsmyFile

With Sheets("Main")

'If MsgBox("是否要貼上縮圖?", vbYesNo) = vbYes Then
If clsInf.IsPasteIMG = True Then

    objFile.IsPaste = True
    mywidth = CInt(clsInf.getIMGwidth) '  CInt(InputBox("請輸入縮圖寬度:"))
    objFile.photo_width = mywidth / 4
    objFile.photo_height = mywidth

End If

objFile.main_path = .Range("B2")

objFile.delRng '刪除既有欄位
objFile.getAllFolder '循環取得指定資料夾中所有照片路徑
objFile.PastePictures  '依序貼上到操作介面

End With

Call extractNames '由檔名萃取至介面欄位
Call ApplyFilterToAllUsedCells '

End Sub

刪除既有欄位

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Sub delRng()

tmp = split(main_path, "\")
main_folder = tmp(UBound(tmp))

With shtResult

'.Range("A1:F1") = Array("ID", "縮圖", "全路徑", "資料夾(" & main_folder & ")", "檔名", "更改檔名")

.Range("D1") = "資料夾(" & main_folder & ")"

Set rng_last = .Cells.SpecialCells(xlCellTypeLastCell)

lr = .Cells(.Rows.Count, 1).End(xlUp).Row
lc = .Cells(1, .Columns.Count).End(xlToLeft).Column

If lr > 1 Then .Range("A2").Resize(rng_last.Row, rng_last.Column).Clear

For Each Shape In .Shapes

    'Debug.Print Shape.Address

    If Shape.TopLeftCell.Row <> 1 Then Shape.Delete

Next

End With

End Sub

取得指定資料夾下所有照片路徑

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Sub getAllFolder()

Dim objFolder As Object

Set objFolder = objFso.GetFolder(main_path)

Call getAllFile(objFolder)

End Sub

Private Sub getAllFile(ByVal objFolder As Object)

If objFolder.Files.Count <> 0 Then

    For Each objFile In objFolder.Files

    s = objFso.GetExtensionName(objFile)

        If IsPhoto(s) Then coll_photo_path.Add objFile.path

    Next

End If

If objFolder.subFolders.Count <> 0 Then

    For Each objSubFolder In objFolder.subFolders

        Call getAllFile(objSubFolder)

    Next

End If

End Sub

貼上照片到操作介面

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
Sub PastePictures()

With shtResult

    lr = .Cells(1, 1).End(xlDown).Row
    lc = .Cells(1, 1).End(xlToRight).Column - 1

    Set rng_last = .Cells(lr, lc)

    'Set rng_last = .Cells.SpecialCells(xlCellTypeLastCell)

    r = 2

    For Each photo_path In coll_photo_path

        If IsPaste = True Then

            Set objTargetCell = .Cells(r, 2)

            objTargetCell.ColumnWidth = photo_width
            objTargetCell.RowHeight = photo_height

            Set pic = .Pictures.Insert(photo_path)
            'Set pic = .Pictures.Insert(imagePath).ShapeRange.PictureFormat.Compression = 75
            'Set pic = .Shapes.AddPicture(photo_path) ', True, True, objTargetCell.Left + 2, objTargetCell.Top + 2, objTargetCell.Width - 4, objTargetCell.Height - 4)
            'pic.LockAspectRatio = msoFalse

            With pic

                dblGap = 2#

                .ShapeRange.LockAspectRatio = msoTrue '鎖定照片長寬比

                Set ranOri = objTargetCell

                dblRatioPic = .Width / .Height
                dblRatioOri = ranOri.Width / ranOri.Height

                If dblRatioPic > dblRatioOri Then '寬度控制
                    .Width = ranOri.Width - 2 * dblGap
                    .Top = ranOri.Top + 0.5 * ranOri.Height - 0.5 * .Height
                    .Left = ranOri.Left + dblGap
                Else                                '高度控制
                    .Height = ranOri.Height - 2 * dblGap
                    .Top = ranOri.Top + dblGap
                    .Left = ranOri.Left + 0.5 * ranOri.Width - 0.5 * .Width

                End If

            End With

        End If


        .Cells(r, 1) = r - 1
        .Cells(r, 3) = photo_path
        .Cells(r, 4) = getParentFolder(photo_path) '取得上層目錄
        .Cells(r, 5) = getFileName(photo_path) '取得檔案名稱

        .Cells(r, 1).Resize(1, rng_last.Column).Borders.LineStyle = 1
        .Cells(r, 6).Resize(1, rng_last.Column).HorizontalAlignment = xlLeft

        'Call getMarkDetail(.Cells(r, 5), r)



        r = r + 1

    Next

End With

End Sub

'====取得上層目錄路徑=====

Function getParentFolder(ByVal path As String)

tmp_folder = Replace(path, main_path, "")

tmp = split(tmp_folder, "\")

tmp_filename = tmp(UBound(tmp))

getParentFolder = Replace(tmp_folder, tmp_filename, "")

End Function

'====取得檔案名稱=====

Function getFileName(ByVal path As String)

tmp = split(path, "\")

getFileName = tmp(UBound(tmp))

End Function

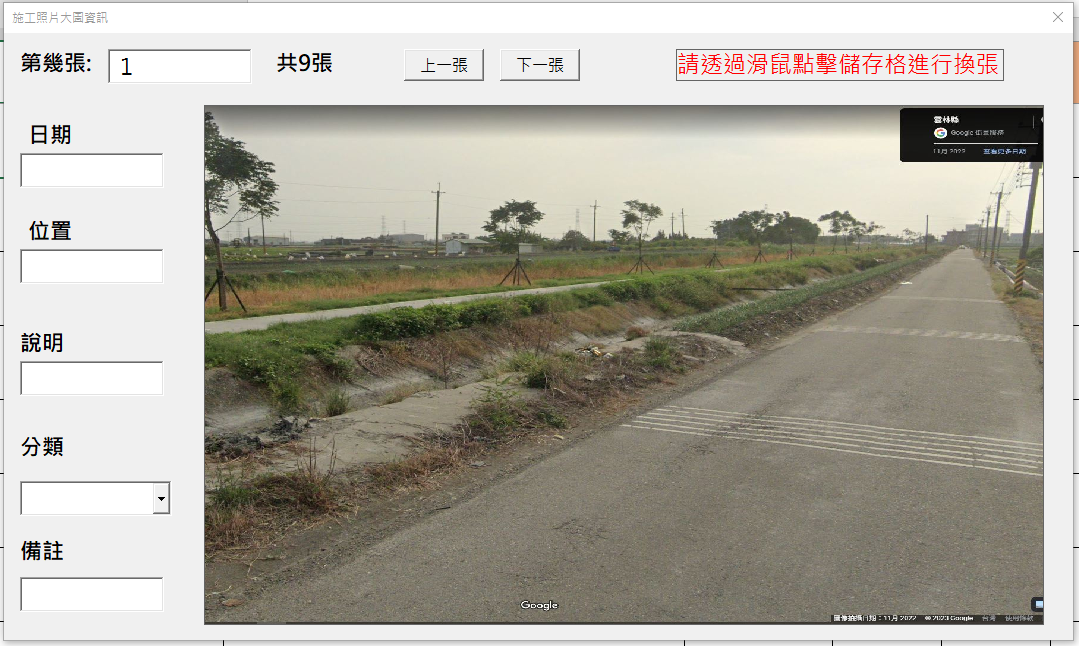

2-2 基本資料登錄

操作介面表單化
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57

'Initialize

Private Sub UserForm_Initialize()

With Sheets("Result")

    lr = .Cells(.Rows.Count, 1).End(xlUp).Row

    Me.Label2.Caption = "共" & lr - 1 & "張"

    Me.Label3.Caption = .Cells(1, 7)
    Me.Label4.Caption = .Cells(1, 8)
    Me.Label5.Caption = .Cells(1, 9)
    Me.Label6.Caption = .Cells(1, 10)
    Me.Label7.Caption = .Cells(1, 11)

    Me.TextBox1 = "1"

    Me.ComboBox1.AddItem "施工抽查"
    Me.ComboBox1.AddItem "品質管制"
    Me.ComboBox1.AddItem "缺失改善"
    Me.ComboBox1.AddItem "施工中"

End With

End Sub

'節錄照片內容

Private Sub TextBox1_Change()

Dim clsI As New clsInformation

'If clsI.IsShowEditForm = False Then Exit Sub

On Error Resume Next

If TextBox1.Value <> "0" Then

s = Cells(TextBox1.Value + 1, 3)

'On Error Resume Next

Image1.Picture = LoadPicture(s)

ImageTmp.TextBox2 = Cells(TextBox1.Value + 1, 7)
ImageTmp.TextBox3 = Cells(TextBox1.Value + 1, 8)
ImageTmp.TextBox4 = Cells(TextBox1.Value + 1, 9)
ImageTmp.ComboBox1 = Cells(TextBox1.Value + 1, 10)
'ImageTmp.TextBox5 = Cells(TextBox1.Value + 1, 10)
ImageTmp.TextBox6 = Cells(TextBox1.Value + 1, 11)

End If

End Sub

第三章節 報表版型

3-1 報表基本版型

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Sub getReportShts()

Dim coll As New Collection

For Each sht In Sheets

    If sht.Name Like "*-*" Then

    coll.Add sht.Name

    End If

Next

For Each it In coll

    j = j + 1

    p = p & j & "." & it & vbNewLine

Next

AGAIN:

mode = InputBox("請選擇列印版型:" & vbNewLine & p)

Sheets(coll(CInt(mode))).PrintPreview

msg = MsgBox("這是您要的版型嗎?", vbYesNo)

If msg = vbYes Then
    Sheets("Main").Range("B4") = coll(CInt(mode))
Else
    GoTo AGAIN
End If

Sheets("Main").Activate

End Sub

3-2 報表客製版型⭐

學習如何從既有版型調整標籤塊到指定位置並調整數量，批次代入工作表

  • <<照片-1>> 引入照片
  • <<位置-1>> 對應H欄
  • <<日期-1>> 對應G欄
  • <<說明-1>> 對應I欄
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
Sub checkReportFormat()

    Dim coll As New Collection

    ' 遍歷報表中的所有儲存格
    For Each rng In Sheets(getReportShtName).UsedRange

        ' 如果儲存格的值匹配 "<<*>>"
        If rng.Value Like "<<*>>" Then

            ' 去掉 << 和 >>
            tmp = Replace(rng.Value, "<<", "")
            tmp = Replace(tmp, ">>", "")

            ' 將結果加入到 coll 集合中
            coll.Add tmp

        End If

    Next

    Dim coll_unique As New Collection

    ' 檢查報表中每個標註項目的對應表頭名稱
    For Each it In coll

        ' 將 coll 中的每個項目按 "-" 拆分，取得關鍵字 ky
        s = Split(it, "-")
        ky = s(0)

        ' 在 "Result" 表的第一行查找這個關鍵字
        Set rng = Sheets("Result").Rows(1).Find(ky)

        ' 如果找不到，且關鍵字不等於 "照片"，顯示錯誤訊息並選中報表中的對應位置
        If rng Is Nothing And ky <> "照片" Then
            Sheets(getReportShtName).Activate
            MsgBox "【" & it & "】:對應不到Result的表頭名稱"
            Set rng_focus = Sheets(getReportShtName).Cells.Find("<<" & it & ">>")
            rng_focus.Select
            End
        End If

        ' 將唯一的編號 num 添加到 coll_unique 集合中
        num = s(1)
        On Error Resume Next
        coll_unique.Add num, CStr(num)
        On Error GoTo 0

    Next

    Dim coll_count As New Collection

    ' 計算每個唯一編號出現的次數
    For Each it_unique In coll_unique

        cnt = 0

        For Each it In coll

            s = Split(it, "-")
            num = s(1)

            If num = it_unique Then
                cnt = cnt + 1
            End If

        Next

        ' 將結果以 "編號-次數" 的格式添加到 coll_count 集合中
        coll_count.Add it_unique & "-" & cnt

    Next

    ' 檢查每個唯一編號的出現次數是否一致
    For i = 1 To coll_count.Count - 1

        s_cnt = Split(coll_count(i), "-")(1)
        e_cnt = Split(coll_count(i + 1), "-")(1)

        If s_cnt <> e_cnt Then
            MsgBox "報表位置註記項目，不同編號應具有相同數量!" & vbNewLine & _
            "請檢核第" & Split(coll_count(i), "-")(0) & "次與第" & Split(coll_count(i + 1), "-")(0) & "次!", vbCritical
            End
        End If

    Next

End Sub

3-3 文字細節調整

日期是否出現於右下角的浮水印文字塊，調整其文字顏色及網底顏色

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Sub AddText(ByVal txtX, ByVal txtY, ByVal txtHeight, ByVal txtWidth, ByVal txtStr, Optional ByVal RGB_Selector As Integer = 0)

Dim o As New clsInformation
Dim r As Long
Dim g As Long
Dim b As Long
Dim r2 As Long
Dim g2 As Long
Dim b2 As Long

If o.IsPrintDate = False Then Exit Sub

RGB_Interior = o.getInteriorColor
Call o.VBLongToRGB(RGB_Interior, r, g, b)
RGB_Font = o.getFontColor
Call o.VBLongToRGB(RGB_Font, r2, g2, b2)

With ThisWorkbook.Sheets(report_shtname)

    .Activate

    ActiveSheet.Shapes.AddTextbox(msoTextOrientationHorizontal, txtX, txtY, txtHeight * Len(txtStr) * 0.33, txtHeight).Select
    Selection.ShapeRange(1).TextFrame2.TextRange.Characters.text = txtStr

    Selection.ShapeRange.Fill.Visible = msoFalse
    Selection.ShapeRange.Line.Visible = msoFalse
    Selection.ShapeRange.ZOrder msoBringToFront

    With Selection.ShapeRange(1).TextFrame2.TextRange.Characters.Font

        .Bold = msoTrue
        .Fill.ForeColor.RGB = RGB(r2, g2, b2)
        .Size = txtHeight * 0.5

    End With

    If o.IsPrintDateBack = True Then

        With Selection.ShapeRange(1).Fill
            .Visible = msoTrue
            .ForeColor.RGB = RGB(r, g, b)
        End With

    End If

End With

End Sub

第四章節 報表輸出

4-1 報表輸出方法 ⭐

建立列印群組，根據版型決定每幾張要換頁，由工作表未隱藏的列決定列印順序，未來亦可建立自己的列印規則，將備註欄的資料篩選併入作為列印的觸發擴充項目(比如設定改善編號、頁次來將工作表的順序進行重新調整)。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Sub getPrintGroups()

Call checkDateFormat
Call checkReportFormat

Dim f As New clsMyfunction
Dim coll_rows_final As New Collection

    Set coll_rows = getRowsUnHidden

    folder_name = Format(Now(), "YYYYMMDD-HHMMSS ")

    For Each r In coll_rows

        With Sheets("Result")

            If .Cells(r, .Columns.Count).End(xlToLeft).Column > 5 Then

            coll_rows_final.Add r

            End If

        End With

    Next

    If coll_rows_final.Count > 0 Then Call printFilesByRows(coll_rows_final, True, folder_name)

    Set coll_rows_final = Nothing

Sheets("Main").Activate

Workbooks(Workbooks.Count).Activate

End Sub

列印相關代碼，包含列印成PDF跟列印成XLS

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
Sub printFilesByRows(ByVal coll_rows, ByVal IsXLS As Boolean, ByVal folder_name As String)

Dim o As New clsReport
Dim f As New clsMyfunction
Dim coll_recover As New Collection

report_shtname = Sheets("Main").Range("B4")

Set coll_key = getKeyWords '第G欄開始

Set wb = Workbooks.Add

ThisWorkbook.Activate

For Each r In coll_rows

KeepPrint:
    i = i + 1

    For Each s In coll_key

        myKey = split(s, ",")(0)
        col = split(s, ",")(1)

        myAddress = getAddressByKeyWord(myKey, CStr(i))

'        If i = 4 Then Stop

        If myAddress <> "" Then

            If myKey = "照片" Then

                file_name = file_name & r & "-"
                'paste photo
                Call o.PastePhoto_giveRng(Sheets(getReportShtName).Range(myAddress), Sheets("Result").Cells(r, "C"), Sheets("Result").Cells(r, CInt(col)))

            ElseIf myKey = "日期" Then

                Sheets(getReportShtName).Range(myAddress) = f.tranStrToDate(Sheets("Result").Cells(r, CInt(col)))

            Else

                Sheets(getReportShtName).Range(myAddress) = Sheets("Result").Cells(r, CInt(col))

            End If

            coll_recover.Add "<<" & myKey & "-" & CStr(i) & ">>;" & myAddress
            IsPrinted = False

        Else

            IsPrinted = True
            If IsXLS = False Then
                Call printReportPDF(file_name)
            Else
                Call printReportToWb(wb, file_name)
            End If

            Call clearReport(coll_recover)
            file_name = ""
            i = 0
            GoTo KeepPrint

        End If

    Next

Next

If IsPrinted = False Then

    If IsXLS = False Then
        Call printReportPDF(file_name)
    Else
        Call printReportToWb(wb, file_name)
    End If

    Call clearReport(coll_recover)

End If

If IsXLS = True Then Call printReportToWb_Save(wb, folder_name)

End Sub

4-2 照片歸檔

將工作表上手動紀錄的資料內容依照指定方式批次針對照片原始檔案進行檔名更改，未來引入時會先判定檔名內容引入工作表相對應資料。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
Sub ChangeAllFileName()

If Sheets("Result").AutoFilterMode Then
    Sheets("Result").AutoFilterMode = False
End If

Call getCombineNames

Dim objFile As New clsmyFile

With Sheets("Main")

    objFile.main_path = .Range("B2")
    objFile.changeFileName

End With

Call getDataFromFolder 'reloading

End Sub

Sub getCombineNames()

Dim clsInf As New clsInformation

Set coll = clsInf.getCollStructure(clsInf.getReNameStruc)

With Sheets("Result")

    lr = .Cells(.Rows.Count, 1).End(xlUp).Row

    For r = 2 To lr

        If .Cells(r, .Columns.Count).End(xlToLeft).Column > 5 Then

            p = ""

            For Each col In coll

                p = p & .Cells(r, col) & "_"

            Next

            .Cells(r, "F") = mid(p, 1, Len(p) - 1)

        End If

    Next

End With

End Sub

改名部分

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Sub changeFileName()

With shtResult

    lr = .Cells(.Rows.Count, 1).End(xlUp).Row

    For r = 2 To lr

        oldname = .Cells(r, 3)

        If .Cells(r, 6) Like "*.jp*" Then
            newname = main_path & .Cells(r, 4) & .Cells(r, 6)
        Else
            newname = main_path & .Cells(r, 4) & .Cells(r, 6) & ".jpg"
        End If

        If .Cells(r, 6) <> "" Then

            Debug.Print "old:" & oldname
            Debug.Print "new:" & newname

            Name oldname As newname

        End If
    Next

End With

End Sub
